Laptop & Computer Configuration for Rhino 3D, Grasshopper & KeyShot

When I started learning CAD, my software choices shaped which computers I bought — and at the same time, those computers influenced which CAD packages I leaned into (or avoided).

My first serious machine was a MacBook Pro running Bootcamp to handle SolidEdge. It got me through my first year of university, but any complex model or rendering was painfully slow. When Rhino was introduced into our curriculum, the MacBook quickly hit its limits.

Later, I upgraded to a ThinkPad P50 with a Quadro M2000 GPU. That laptop was a tank—solid build, workstation stability, and it never throttled. Rhino modeling and Grasshopper plugins ran smoothly, and for the first time I could fully explore my imagination. I would run airflow simulations, experiment with genetic algorithms like Galapagos, and even make unnecessary KeyShot animations—simply because I finally had the horsepower. But even the P50 eventually struggled when it came to high-quality animations and renders.

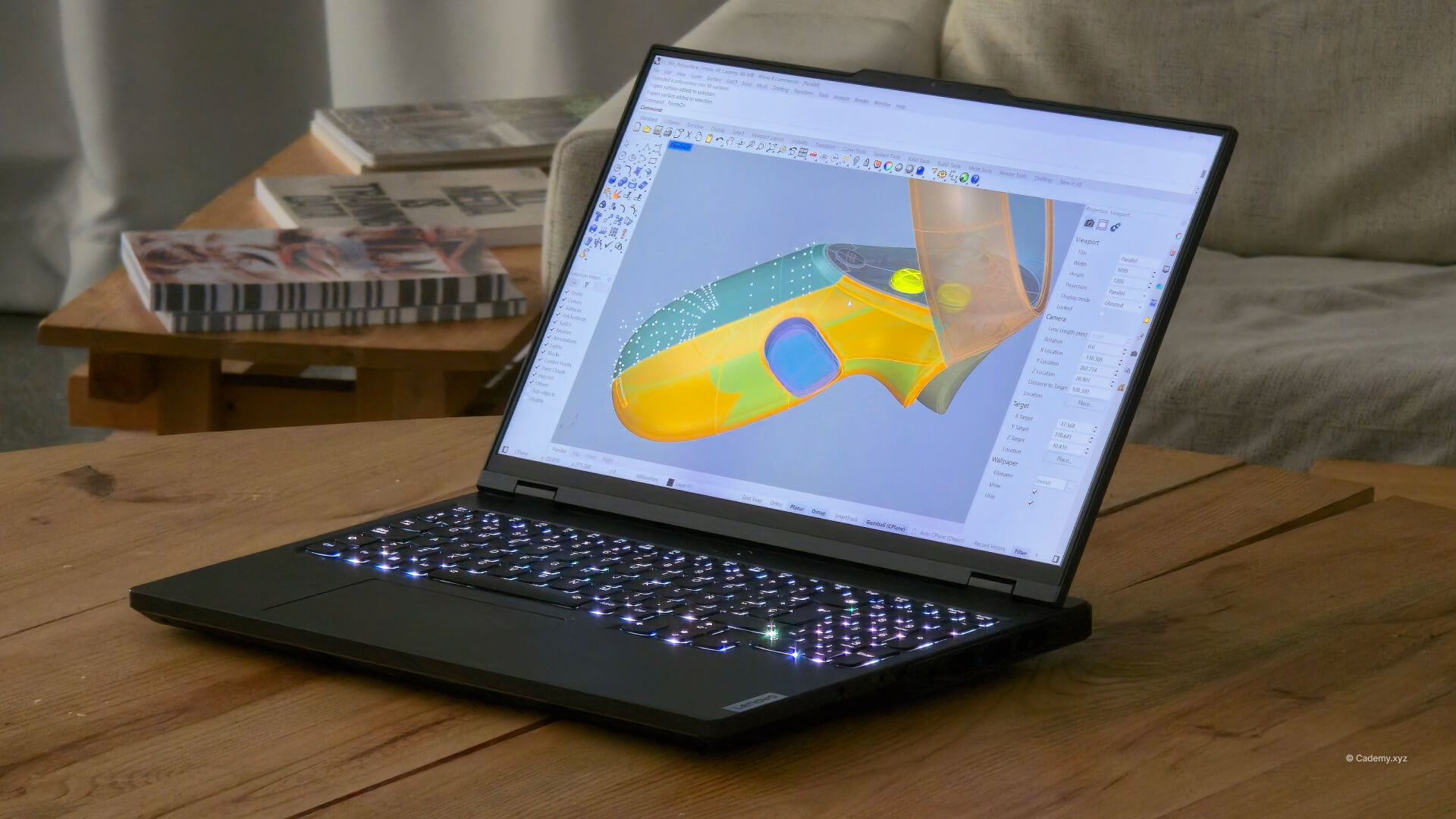

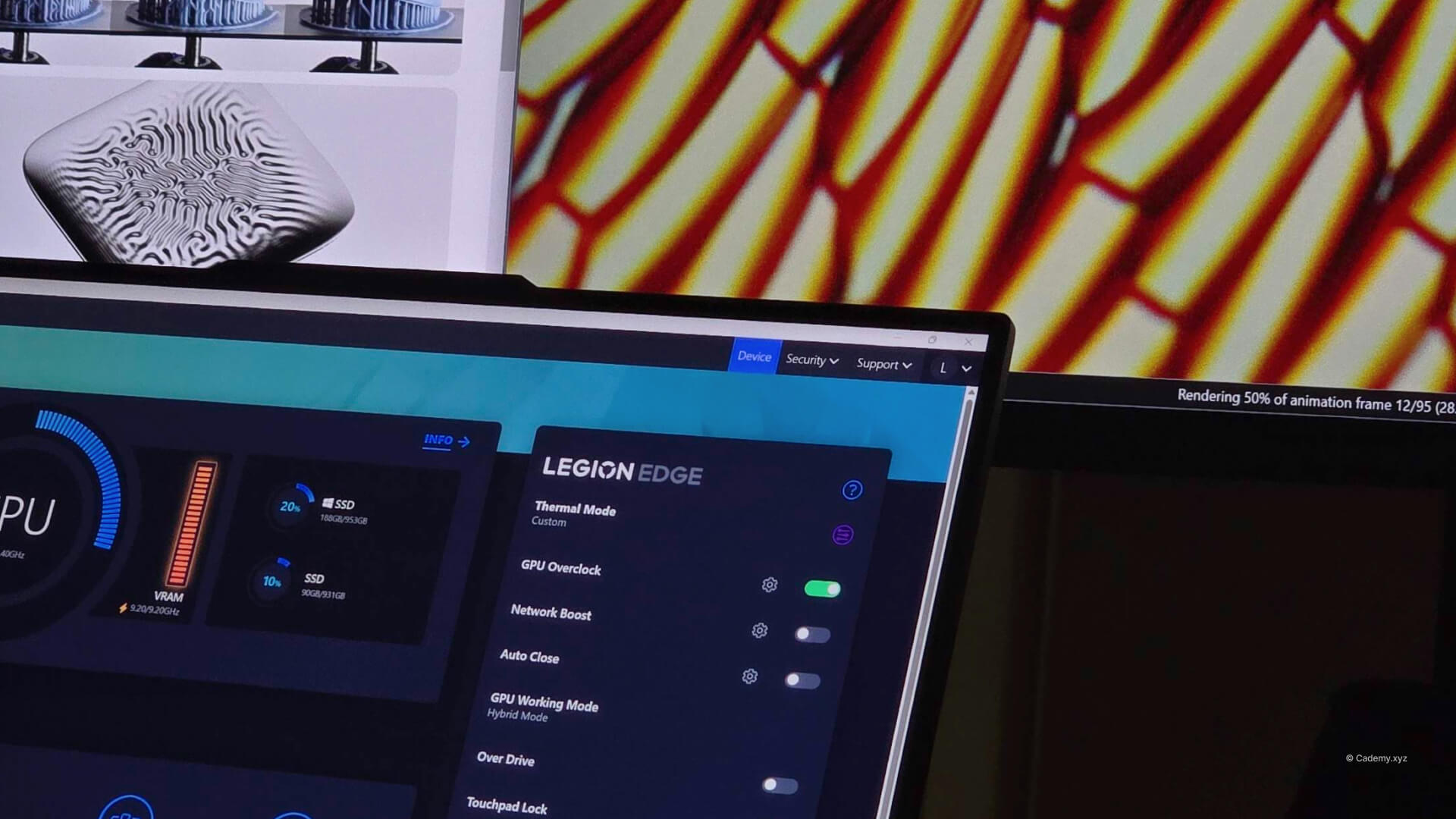

Today, I use a Legion Pro 7 with an RTX 4080 and i9 (bought in 2023). With 32 GB of RAM, it handles Rhino and Grasshopper blazingly fast. For KeyShot, it’s a rendering beast, though like most high-performance gaming laptops it can occasionally throttle—usually just from dust buildup in the vents. Still, the leap in GPU rendering speed compared to my earlier machines is night and day.

Through this progression, I’ve learned that not all software stresses your computer in the same way. Rhino rewards strong single-core CPUs, Grasshopper scales with plugins and RAM, and KeyShot thrives on powerful GPUs. In this guide, I’ll break down what students and professionals really need to get the best performance with the least expenditure.

‍

1. How the software uses your hardware

Rhinoceros 3D

• CPU (single-core performance is key).
  ‍Rhino’s modeling kernel is CPU-bound and relies heavily on single-core speed for creating, editing, and displaying geometry. A high-clock Intel i7/i9 or AMD Ryzen chip feels smoother than a slower many-core workstation CPU.
• GPU (mostly for viewport display).
  Rhino doesn’t use the GPU for geometry calculations, only for real-time viewport performance (OpenGL). If you plan to use Raytraced mode or Rhino Render, a modern gaming or pro GPU (RTX, Radeon, Quadro) is plenty.
• Memory (RAM).
  Important for large/heavy models. 16 GB is fine for most users, but 32 GB+ is recommended for detailed product models and future-proofing.
• Apple Silicon (M1/M2/M3).
  Rhino 8 runs natively on Apple Silicon and performance is excellent according to McNeel. If you need to run the Windows-only version (for legacy plugins), you can also use Parallels on Mac to virtualize Windows and still work smoothly.

• Reference: McNeel Forum discussion on Rhino + Apple Silicon

Grasshopper 3D + Plugins

• CPU (single-core, with some multi-core plugins).
  Grasshopper itself is CPU-bound and benefits from higher clock speeds more than extra cores. That said, some plugins like Sasquatch can leverage multiple cores.
• GPU (rarely needed).
  The GPU only matters when previewing dense meshes or if you’re using GPU-accelerated plugins like TopOS (topology optimization) or Flexhopper.
• RAM.
  The bigger the definition (voxel grids, lattices, parametric iterations), the more RAM you need. 16 GB is a safe minimum, but 32 GB is recommended for computational design workflows.
• Apple Silicon.
  Most popular plugins (Lunchbox, Pufferfish, Weaverbird, Dendro, Crystallon) now work on Mac, both natively and under Parallels. Only a handful of niche plugins remain Windows-only.

KeyShot

• CPU Rendering.
  KeyShot can render on CPUs with many cores. AMD Ryzen and Intel i9 with high core counts scale well. Best practice: don’t allocate 100% of cores — leave 1–2 free for background tasks to avoid throttling.
• GPU Rendering (preferred).
  NVIDIA RTX GPUs are the fastest way to use KeyShot. The renderer supports CUDA + OptiX, so RTX 3070/4070/4080/4090 cards deliver massive speed improvements compared to CPU-only rendering.
• Mac (Apple Silicon).
  • CPU rendering works fine and is efficient for smaller projects.
  • No GPU rendering support on Apple Silicon, since KeyShot doesn’t use Apple’s Metal framework for GPU compute.
  • Result: A MacBook Pro can run KeyShot, but it will always be slower than a Windows machine with a dedicated RTX GPU.
• KeyShot official computer spec guide

2. Apple Silicon (M1, M2, M3) vs Windows Workstations

• MacBook Pro / Air (M1–M3):
  • Rhino 8 and Grasshopper run natively on Apple Silicon.
  • Most major Grasshopper plugins (Lunchbox, Pufferfish, Weaverbird, Dendro, Crystallon) are available.
  • Great battery life, light build, quiet — but not ideal for GPU rendering in KeyShot.
• Windows (Intel/AMD + NVIDIA RTX):
  • Best choice if you need GPU rendering (KeyShot, V-Ray, Blender, Unreal).
  • More upgradeable: extra RAM, storage, or even GPU on desktops.
  • Wider range of price points.

3. Laptop Recommendations

Mac (for portability, design, battery)

• MacBook Air M2/M3 → Enough for Rhino + Grasshopper basics. Perfect for students in Rhinoceros 3D Masterclass.
• MacBook Pro 14”/16” M2 Pro/Max or M3 Pro/Max → Best Mac option for Grasshopper-heavy workflows. Still slower than Windows RTX laptops for KeyShot GPU rendering.

Windows (for power, upgradability)

• ThinkPad P-series (P1, P16, etc.) → Workstation reliability, ISV-certified GPUs (Quadro/RTX A series), legendary build quality.
• Lenovo Legion Pro 7 (your current RTX 4080/i9 beast) → Gaming laptop DNA, but extremely powerful for KeyShot GPU rendering. Can throttle under prolonged load, but unbeatable price-to-performance.
• Dell XPS 15/17 → Sleek design, good for Rhino/Grasshopper, though thermals are less efficient than bulkier gaming/workstation laptops.
• MSI Creator Z-series → Balanced for both GPU rendering and design work.

4. Course-by-Course Requirements

Rhinoceros 3D Masterclass

• Any basic laptop, including MacBook Air or Pro.
• Focus: CPU single-core → even a midrange chip works fine.

Grasshopper 3D Masterclass

• Most laptops work (Mac and Windows).
• Popular plugins (Lunchbox, Pufferfish, Weaverbird, Dendro, Crystallon) are Mac-compatible.
• Some niche Windows-only plugins (e.g., Sasquatch).

KeyShot Masterclass

• GPU rendering is much faster → Windows + RTX laptop recommended.
• MacBooks can run CPU rendering but are slower (no GPU acceleration).

Parametric Texture Workshop

• Same as Grasshopper — most laptops work.
• Plugins available for both Mac and Windows.

Computational Design Workshop

• Similar to Grasshopper → plugins available for both Mac and Windows.
• More RAM (32 GB) helps with heavy definitions.

5. Lessons from My Own Machines

• MacBook Pro (Bootcamp, SolidEdge): First experience with CAD. Portable but limited for rendering.
• ThinkPad P50 with Quadro M2000: Rock-solid, reliable workstation. Great thermals, never throttled.
• Legion Pro 7 (RTX 4080, i9, 2023): A rendering powerhouse, though sometimes throttles. Best bang-for-buck for KeyShot GPU rendering.

6. Key Takeaways

• For Rhino modeling: prioritize CPU single-core speed.
• For Grasshopper: single-core speed, with RAM and some multi-core plugins.
• For KeyShot: GPU rendering is fastest → NVIDIA RTX. Macs can’t use GPU rendering yet.
• For students: Don’t overspend. Most courses run fine on midrange laptops. Invest more only if rendering speed is critical.

‍
