Evolutionary Design with Grasshopper & Biomorpher
1000s of Designs in seconds with Grasshopper
How many physical design iterations can your team evaluate in a day? Five? Ten? What if you could generate, evaluate, and physicalize hundreds of distinct, valid design variations in a single afternoon?
Download File
Using a humble, everyday product—a screwdriver handle—we break down how evolutionary design solvers like Biomorpher transform traditional CAD processes into a dynamic design engine.
In industrial design, moving beyond basic parametric modeling means letting computational systems explore design spaces you might never have considered.
The 3-Step Strategy for Evolutionary Workflows
1. Define the Genetic Variables
Before defining the computation workflow, define the design parameters (the "genes") you want to control. For a screwdriver handle, this includes:
- Overall length, taper, and grip diameter
- Number of cutouts, depth, and profile of ergonomic flutes/grooves
- Bevel angles and transitional fillets
2. Build a Robust Parametric "Search Space"
The core rule of generative modeling: Zero broken geometry.

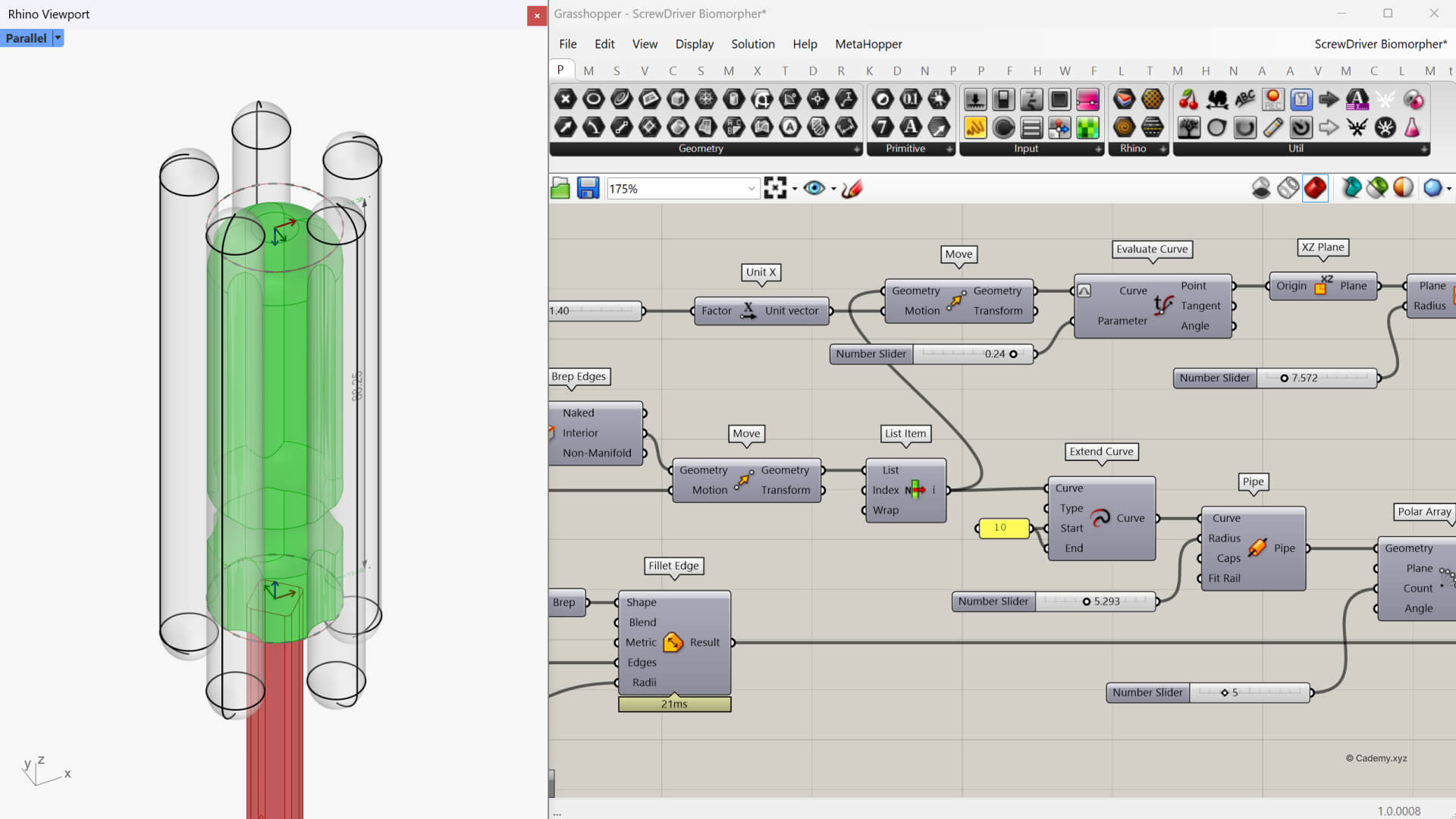

Your parametric Grasshopper definition must be designed so that no matter the permutation of slider inputs, the script produces a valid, watertight solid body. By constraining the search space within functional boundaries, you unlock an infinite array of viable design options without model failure.
3. Evolutionary Selection with Biomorpher

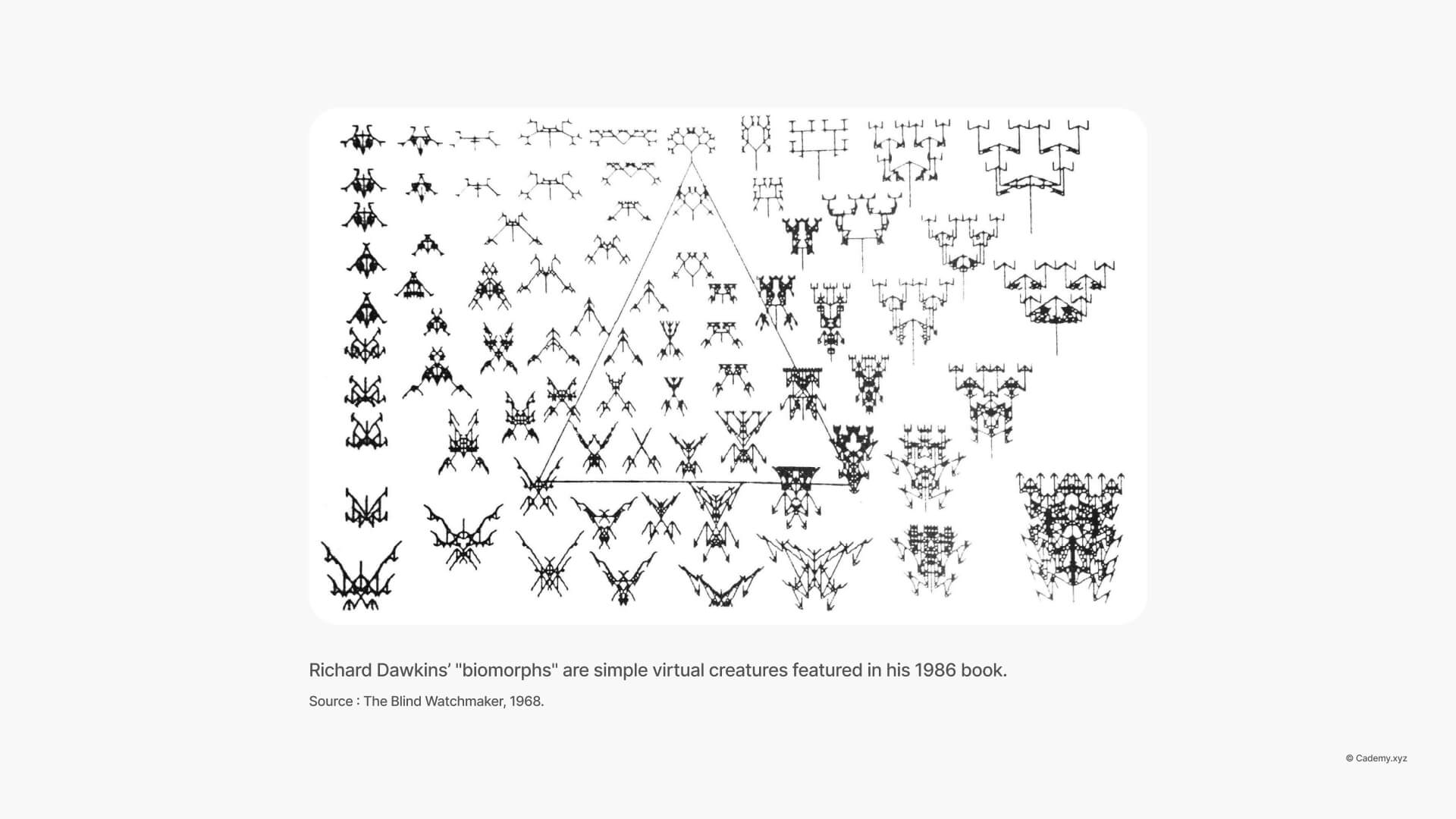

Inspired by Richard Dawkins’ concept of biomorphs in The Blind Watchmaker, the Biomorpher plugin turns design generation into a process of artificial selection.

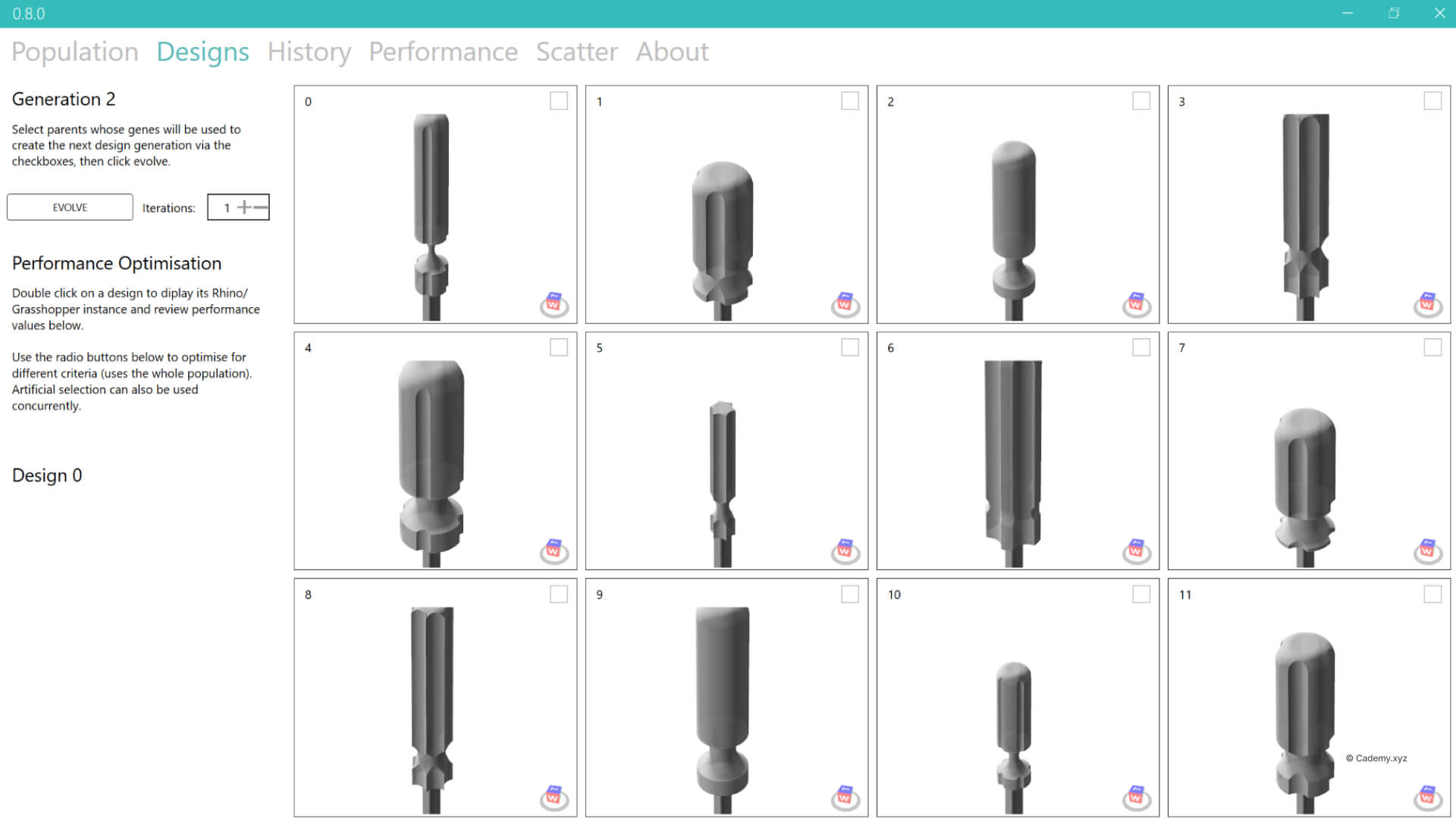

- Selective Breeding: Biomorpher generates random initial populations. You visually evaluate the options, select the designs with potential, and let the algorithm "crossbreed" and mutate them into new generations.
- Hybrid Optimization: Combine subjective aesthetic evaluation with objective performance optimization (e.g., minimizing volume/material weight, maximizing grip surface area, or optimizing torque transfer).
From Genotype to Phenotype: 3D Printing
Generating hundreds of options on a screen is only half the battle. The real magic happens when computational output meets rapid prototyping:

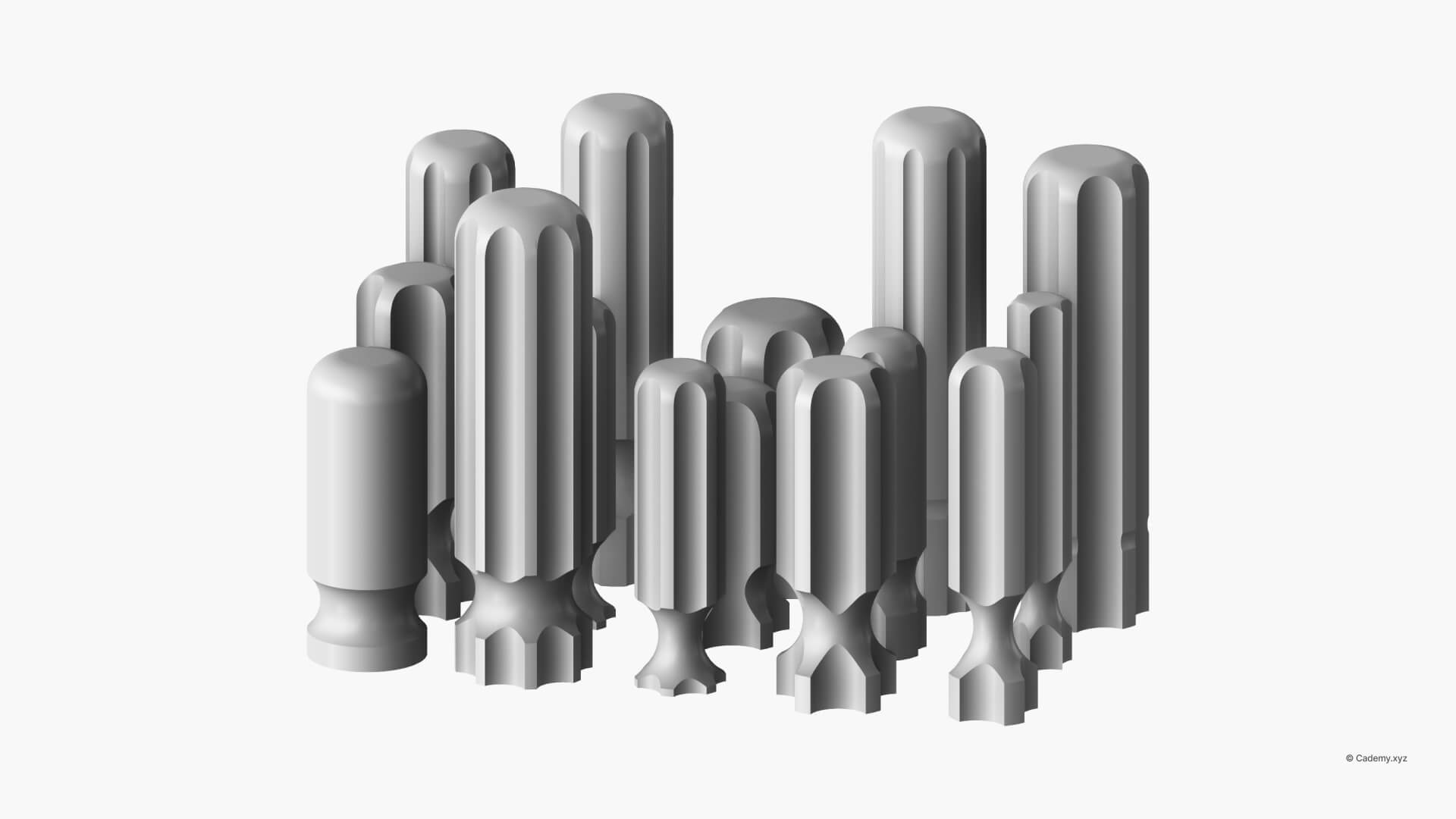

- Automated Batching & Baking: Export dozens of evolved iterations directly onto a build plate with a single click.

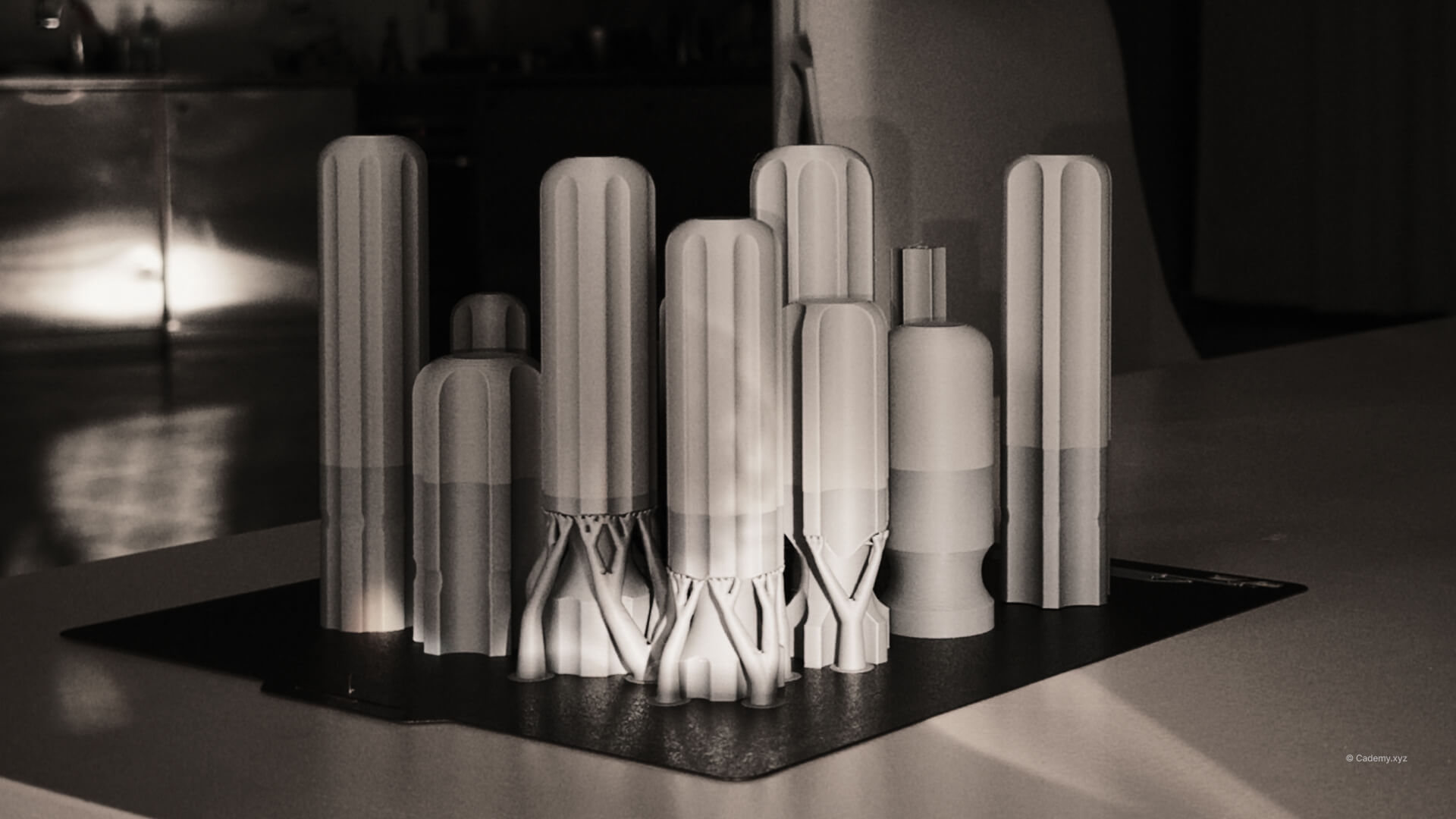

- Rapid 3D Printing: Print arrays of handles to evaluate ergonomics in real hands.
- Cross-Disciplinary Reviews: Pass physical samples directly to your Industrial Design, Ergonomics, and CMF (Color, Material, Finish) teams to rapidly lock down the winning direction.
Master Generative & Evolutionary Design in Our Computational Design Workshop
Designing through evolution changes how you think about products. In our Computational Design Workshop, we go deep beyond the basics:
- Grasshopper Logic: Crafting bulletproof, fail-safe parametric definitions.
- Advanced Biomorpher Workflows: Fine-tuning mutation rates, cross-breeding parameters, and multi-objective evolutionary algorithms (MOEAs).
- Physical Prototyping Workflows: Automated layout, preparation, and batching for additive manufacturing.
